Aircraft |
| Model |
T650 |
| Weight |
7.58 lbs (3440 g, including propellers and two batteries, without gimbal and camera) |
| Max Takeoff Weight |
8.82 lbs (4000 g) |
| GPS Hovering Accuracy |
Vertical: ±1.64 feet (0.5 m) or ±0.33 feet (0.1 m, Downward Vision System enabled)
Horizontal: ±4.92 feet (1.5 m) or ±0.98 feet (0.3 m, Downward Vision System enabled)
|
| Max Angular Velocity |
Pitch: 300°/s
Yaw: 150°/s
|
| Max Tilt Angle |
P-mode: 35° (Forward Vision System enabled: 25°)
A-mode: 35°
S-mode: 40°
|
| Max Ascent Speed |
P-mode/A-mode: 16.4 ft/s (5 m/s)
S-mode: 19.7 ft/s (6 m/s)
|
| Max Descent Speed |
Vertical: 13.1 ft/s (4 m/s)
Tilt: 13.1-29.5 ft/s (4-9 m/s)
|
| Max Takeoff Sea Level |
1.55 mi (2500 m)
3.1 mi (5000 m with specially-designed propeller)
|
| Max Wind Speed Resistance |
10 m/s |
| Max Flight Time |
Approx. 27 min (with Zenmuse X4S) |
| Motor Model |
DJI 3512 |
| Propeller Model |
DJI 1550T |
| Indoor Hovering |
Enabled by default |
| Operating Temperature |
-4° to 104° F (-20° to 40° C) |
| Diagonal Distance(propeller excluded) |
23.8 inch (605 mm, Landing Mode) |
| Max Speed |
58 mph or 94 kph(Sport mode) |
| |
Downward Vision System |
| Velocity Range |
<32.8 ft/s (10 m/s) at height of 6.56 feet (2 m) |
| Altitude Range |
<32.8 feet (10 m) |
| Operating Range |
<32.8 feet (10 m) |
| Operating Environment |
Surfaces with clear patterns and adequate lighting (> 15 lux) |
| Ultrasonic Sensor Operating Range |
0.33-16.4 feet (10-500 cm) |
| Ultrasonic Sensor Operating Environment |
Non-absorbing material, rigid surface (thick indoor carpeting will reduce performance) |
| |
Forward Vision System |
| Obstacle Sensing Range |
2.3-98.4 feet (0.7-30 m) |
| FOV |
Horizontal: 60°; Vertical: 54° |
| Operating Environment |
Surfaces with clear patterns and adequate lighting (> 15 lux) |
| |
Upward Infared Sensor |
|---|
| Obstacle Sensing Range |
0-16.4 feet (0-5 m) |
| FOV |
±5° |
| Operating Environment |
Large-size non-reflective obstacles |
| |
Remote Controller |
| Model |
GL6D10A |
| Operating Frequency |
2.400-2.483 GHz
5.725-5.850 GHz
|
| Max Transmitting Distance(unobstructed, free of interference) |
2.4 GHz: 4.3 miles (7 km, FCC); 2.2 miles (3.5 km, CE); 2.5 miles (4 km, SRRC)
5.8 GHz: 4.3 miles (7 km, FCC); 1.2 miles (2 km, CE); 3.1 miles (5 km, SRRC)
|
| EIRP |
2.4 GHz: 26 dBm (FCC); 17 dBm (CE); 20 dBm (SRRC)
5.8 GHz: 28 dBm (FCC); 14 dBm (CE); 20 dBm (SRRC)
|
| Video Output Ports |
USB, HDMI |
| Power Supply |
Built-in battery |
| Charging |
DJI charger |
| Dual User Capability |
Host-and-Slave connection |
| Mobile Device Holder |
Tablet or Smart Phone |
| Max Mobile Device Width |
170 mm |
| Output Power |
9 W (Without supplying power to smart device) |
| Operating Temperature |
-4° to 104° F (-20° to 40° C) |
| Storage Temperature |
Less than 3 months: -4° to 113° F (-20° to 45° C)
More than 3 months: 72° to 82° F (22° to 28° C)
|
| Charging Temperature |
32° to 104° F (0° to 40° C) |
| Battery |
6000mAh 2S LiPo |
| USB Supply Power |
iOS: 1 A @ 5.2 V (Max); Android: 1.5 A @ 5.2 V (Max) |
| |
Gimbal |
| Angular Vibration Range |
±0.005° |
| Mount |
Detachable |
| Controllable Range |
Tilt: +40° to -125°; Pan: ±300°; Roll: ±20° |
| Mechanical Range |
Tilt: +50° to -130°; Pan: ±330°; Roll: +90° to -50° |
| Max Controllable Speed |
Tilt: 180°/s; Roll: 180°/s; Pan: 360°/s |
| |
Camera |
| Sensor |
Sensor Size (Still): 23.5×15.7 mm
Sensor Size (Max video recording area): 23.5×12.5 mm
Effective Pixels: 24 MP |
| Supported Lenses |
DJI DL-S 16mm F2.8 ND ASPH (with lens hood and balancing ring/filter)
DJI DL 24mm F2.8 LS ASPH (with lens hood and balancing ring/filter)
DJI DL 35mm F2.8 LS ASPH (with lens hood and balancing ring/filter)
DJI DL 50mm F2.8 LS ASPH (with lens hood and balancing ring/filter |
| Supported Micro SD/SSD Cards |
MicroSD: Class 10 or UHS-1 rating with a writing speed of 15 MB/s required; Max capacity: 64 GB
SSD: DJI CINESSD |
| Photo Sizes |
3:2, 4:3, 16:9 |
| Photo Formats |
DJI CINESSD: DNG
Micro SD: DNG, JPEG, DNG+JPEG |
| Operation Modes |
Capture, Record, Playback |
| Still Photography Modes |
Micro SD: Single Shot, Burst Shooting (3/5/7/10 shots), Auto Exposure Bracketing (3/5 bracketed shots at 0.7 EV bias), Interval
SSD: RAW Burst (3/5/7/10/14/∞ frames), up to 20 fps when using RAW Burst (exact quantity is determined by storage card capacity and battery power level) |
| Shutter Speed |
Electronic Shutter Speed: 1/8000 – 8s
Mechanical Shutter Speed: 1/1000 – 8s (DJI DL-S 16mm F2.8 ND ASPH not supported) |
| ISO Range |
Photo: 100 – 25600
Video: 100 – 1600 (EI mode on); 100 – 6400 (EI mode off) |
| |
Video |
| Video Formats |
CINESSD: CinemaDNG, ProRes
Micro SD: MOV, MP4 |
| Video Resolution |
Aspect Ratio 17:9
CinemaDNG
6K: 6016×3200, 23.976/24/25/29.97/30p, 12-bit, full FOV
4K DCI: 4096×2160, 23.976/24/25/29.97/30p, 12-bit, full FOV
3.9K: 3944×2088, 47.95/50/59.94, 12-bit, narrow FOV
ProRes
4K DCI: 4096×2160, 23.976/24/25/29.97/30p, 10-bit, HQ, full FOV
2K: 2048×1080, 47.95/50/59.94p, 10-bit, HQ/XQ, narrow FOV
H.264
4K DCI: 4096×2160, 24/25/30/48/50/59.94p
H.265
4K DCI: 4096×2160, 24/25/30p
Aspect Ratio 16:9
CinemaDNG
6K: 5760×3240, 23.976/24/25/29.97/30p, 12-bit, full FOV
4K Ultra HD: 3840×2160, 23.976/24/25/29.97/30p, 12-bit, full FOV
3.7K: 3712×2088, 47.95/50/59.94, 12-bit, narrow FOV
ProRes
4K Ultra HD: 3840×2160, 23.976/24/25/29.97p, 10-bit, HQ/XQ, full FOV
2.7K: 2704×1520, 47.95/50/59.94p, 10-bit, HQ, narrow FOV
FHD:1920×1080, 47.95/50/59.94p, 10-bit, HQ/XQ, narrow FOV
H.264
4K Ultra HD: 3840×2160, 24/25/30/48/50/59.94p
2.7K: 2720×1530, 24/25/30/48/50/59.94p
FHD: 1920×1080, 24/25/30/48/50/59.94p
HD: 1280×720, 24/25/30/48/50/59.94p
H.265
4K Ultra HD: 3840×2160, 24/25/30p
2.7K: 2720×1530, 24/25/30/48/50/59.94p
FHD: 1920×1080, 24/25/30/48/50/59.94p
HD: 1280×720, 24/25/30/48/50/59.94p
Aspect Ratio 2.44:1
ProRes
5.2K: 5280×2160, 23.976/24/25/29.97/30p, 10-bit, HQ, full FOV
H.264/H.265
4K Ultra HD: 3840×1572, 30p, full FOV
Refer to the User Manual for more information. |
| |
Camera Features |
| Exposure Mode |
Auto, Manual, Shutter Priority, Aperture Priority |
| Exposure Compensation |
±3.0 (3 stops of light) |
| Metering |
Center-Weighted Metering, Spot Metering (12 × 8 area selection) |
| AE Lock |
Supported |
| White Balance |
Auto, Sunny, Cloudy, Incandescent, Neon, Custom (2000 K – 10000 K) |
| Video Caption |
Supported (AVC/HEVC) |
| PAL/NTSC |
Supported |
| Ultrasonic Dust Removal |
Supported |
| |

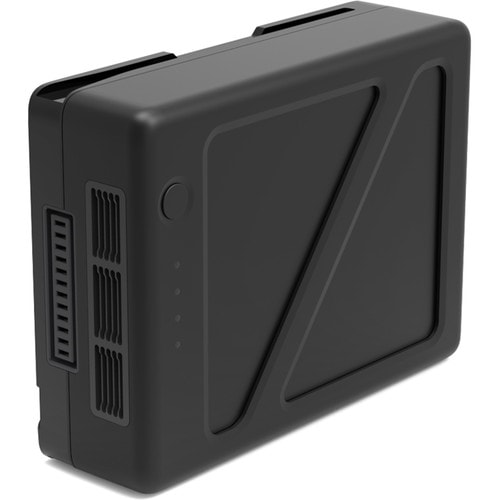

Intelligent Flight Battery |
| Name |
Intelligent Flight Battery |
| Model |
TB50 |
| Capacity |
4280 mAh |
| Voltage |
22.8 V |
| Battery Type |
LiPo 6S |
| Energy |
97.58 Wh |
| Net Weight |
515 g |
| Charging Temperature |
41° to 104° F (5° to 40° C) |
| Operating Temperature |
-4° to 104° F (-20° to 40° C) |
| Max Charging Power |
180 W |
| Storage Temperature |
Less than 3 months: -4° to 113° F (-20° to 45° C)
More than 3 months: 72° to 82° F (22° to 28° C)
|
| |
Charger |
| Voltage |
26.1 V |
| Rated Power |
180 W |
Charging Hub |
| Model |
IN2CH |
| Input Voltage |
26.1 V |
| Input Current |
6.9 A |
